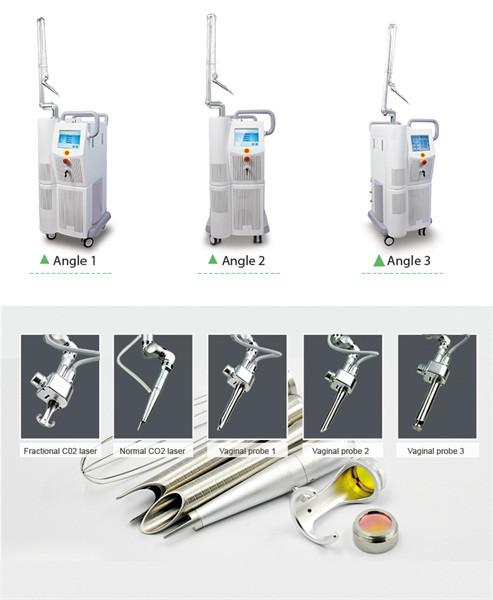

10600nm Fractional Co2 Laser Pigment Removal Skin Rejuvenation
Beauty Machine
Teatment Theory
Fractional laser light penetrates the skin with tiny thermal
channels through the random scanning. This creates an ablative and
thermal effect on only these channels (a micro-injury) without
damaging the surrounding tissue. The tissue surrounding the
micro-injury sites (about 15-20% of the treatment area) starts the
process of healing. As collagen remodels, skin tightened, scars
improved and pigmented lesions removed.
Specification
| Laser Type | RF-excited CO2 laser | Wavelength | 10600nm |
| Beam Delivery | 7 articulated Arm | Maximum Output Power | 30W |
| Optical Beam Quality | TEM | Spot Size | 80um-2000um |
| Scanning Mode | Randomized Scanning | Laser Operating Mode | Ultra Pluse, CW, Fractional |
| Cooling | Air Cooling | Pulse Energy | 2mj-200mj(stepping:2mj) |
| Spot Pattern | Triangle/Square/Rectangle/ Rhombus/Round | Pulse Interval | 1ms-100ms(stepping:1ms) |
| Scan Area | 1cm*1cm, 2cm*2cm, 3cm*3cm | Dimensions(before packaged) | 650mm*340mm*760mm |
| Spot Density | 36spots/cm², 144spots/cm², 576spots/cm² | Dimensions(After Packaged) | 1090mm*1150mm*600mm |
| Power Supply | AC220V 50HZ / AC110V 60HZ | | |
Applications
l Application Range of Fractional treatment handpiece:
1. Large pores, Fine lines, Skin tightening and whitening, Skin
loosen(Deep Wrinkles), Stretch marks.
2. Various Scars:Burn Scars, Acne Scars, Surgical Scars and
Keloid.Pigmented skin lesions:Chloasma, Freckles, Age spots, Sun
spots, CAMLS.
3. Reconstruction of photoaging skin.
ll Application Range of Incision handpiece:
1. Via multiple handles it can be adapted to Gynecology, ENT,
Neurology and general surgery.
2. In Cosmetic Surgery, it can be adapted to incisions for
Blepharoplasty, Skin Tags and Ingrown Nails, Compound Nevus and
Intra Dermal Nevus etc.
Advantages
1. RF-excited laser system ensures stable performance.
2. Windows CE system facilitates a remote upgrade.
3. Ultrapure, CW, fractional laser output modes extends treatment
range.
4. Patent adjust with spot size 50 to 2000μm adjustable provides a
full spectrum of ablation.
5. Max. 30W power output, Min. 50μm spot size enables 4mm
penetration to release treatment painlessly and complications.
6. Max 3cm*3cm, Min. 0.125cm*0.125cm treatment area provides a fast
and precise treatment.
How to service
A. After purchase, we will send technical instructors to provide
training services for free;
B. Regular following service by telephone is available at any time
to help you solve the technical problems encountered;
C. In addition to telephone contact, you can also visit our website
to download relevant technical information at any time.
Basic Services
1, Can buy 1 set for test order.
2, 24 hours online, can reply Quickly.
3, Pick up you to our factory come and back.
4, Have Many Styles BEAUTY EQUIPMENT, you have enough choice.
5, Short Production time and delivery.
6, Quality Inspecting.
